Highlights
A battery charger, maintainer, also a desulfator.
Maximum 4A charging current, super charging speed.
Evolutionary 10-step smart charging technology with 8 charging modes.
Can charge drained batteries (> 4.5 volts) with forced mode.

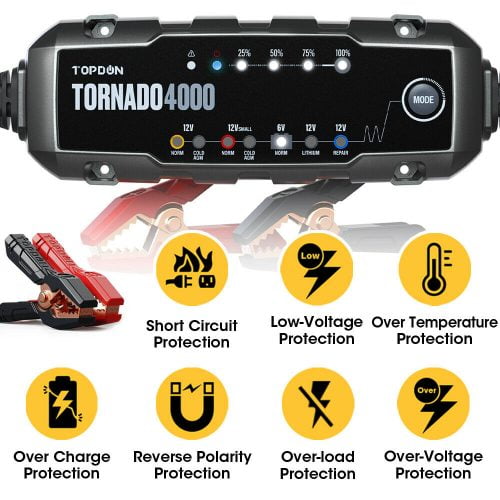

Multiple built-in automatic protections against reverse polarity; overvoltage; overload; overcharging; overheating; short-circuit (spark-proof); low voltage.
Compact design with intuitive LED indicators.

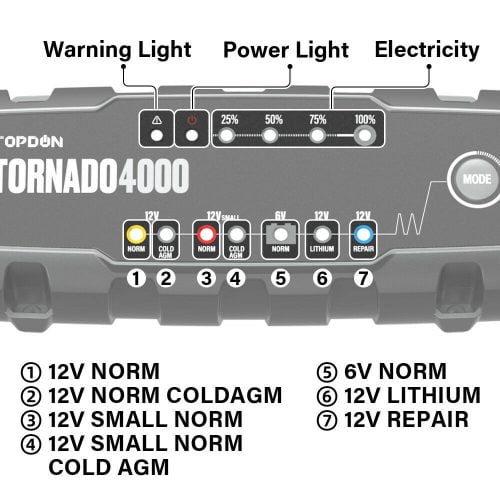

8 Charging Modes for Stable & Optimal Charging
Why your battery can’t get fully charged when it is cold or hot outside?
Why your lithium-ion batteries aren’t well-performed after the charging?
As you may notice, charging various batteries in different conditions and surroundings needs special care.
This automotive battery charger TORNADO4000 is tailored with advanced 8 manually selected modes, to guarantee optimal charging for your battery (view details in the image).
Avoid under-charging in cold weather even to 14°F (-10°C).
Avoid over-charging in hot weather up to 104°F (40°C).
Suitable for AGM batteries which are sensitive to overcharging.
Charge lithium-ion batteries correctly for excellent battery performance.
Offer precise charging to small capacity batteries (20AH-50AH).
Can even charge 12V aged, idle, damaged, stratified, or sulfated batteries.
10-Step Smart Charging, Microprocessor Controlled.
The built-in microprocessor in this car battery charger intelligently breaks the charging process into 10 routine steps. Each step is designed to maximize charging performance and help extend battery life:
Battery Analysis & Diagnosis – make a quick diagnosis; determine if the battery can hold a charge.
Battery Desulphation – break down the sulfates; optimize the charging.
Soft Start – minimize the startup currents; avoid the sudden voltage surges.
Battery Initialization – start charging with a gentle (soft) charge.
Battery Bulk Charge – begin the bulk charging to 80% of the battery’s capacity.
Absorption Mode – deliver small amounts of current when the charge level is 90%.
√Battery Recondition – check battery status, recover with a small current.
Battery Optimization – finalize charging, and bring the battery to maximum capacity.
Battery Float Charge – maintain the battery fully charged, without overcharging.
Battery Restart Charge – restart charging, when battery capacity is <85%.
Switching between modes is fully automatic and hands-free.
This 10-step charging process ensures that each battery gets the power it needs, and can be left 24/7 without overcharging or damage.

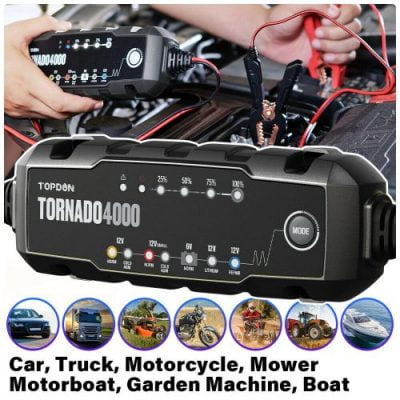

Wide Application
As an effective battery charger, TORNADO4000 has 4 Amp current output for charging 6 and 12-volt batteries, both lead-acid and lithium-ion, from 20Ah up to 120Ah, with an impressive range of applications from automotive to marine, power sport, RV, and deep-cycle batteries. Ideal for vehicle drivers, auto repair shops, large garages, battery workshops, and data center computer room.
Faster Charging Speed
Need to charge batteries faster? Pick this battery charger with massive 4A charge output, with a smart processor optimizing the charging process. It allows 2X faster charging speed, being powerful, easy-to-use, and super safe, to keep your vehicle’s battery charged and maintained so it’s always ready to go.
Specifications:
Input Voltage AC: 100-240VAC, 50-60Hz
Working Voltage AC: 100-240VAC, 50-60Hz
Efficiency: 85% Approx.
Power: 65W Max
Charging Voltage: 4A(12V); 4A(6V)
Low-Voltage Detection: 8.5V(12V); 4.5V(6V)
Back Current Drain: <5mA
Working Temperature: -4℉ to 104℉ (-20℃ to 40℃)
Charger Type: 10 Step, Smart Charger
Type of Batteries: 6V & 12V
Battery Chemistries: Wet, Gel, MF, EFB, AGM & LIB
Battery Capacity: 20Ah-150Ah (6V & 12V)
Housing Protection: IP65
Dimensions: 8.09*2.92*1.83 inches (205.4*74.1*46.5mm)
Weight: 1.20 lb (545g)
Cooling: Natural Convection

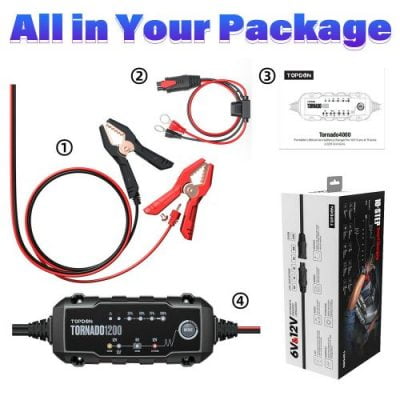

Package List:
1x TOPDON TORNADO4000 (AC Cable: 78.74 inch, 200cm; Clamp Cable: 78.74 inch, 200cm)
1x Battery Clamp Set
1x Eyelet Terminal Connector (23.23 inch; 59cm)
1x User Manual
English
French
German
Greek
Italian
Russian
